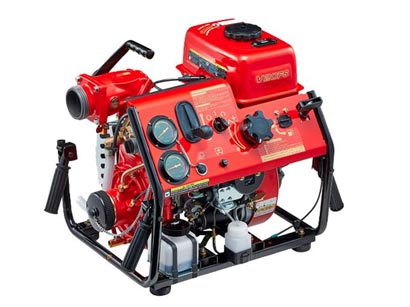

Fire Pump Tohatsu V20FS
Spesifikasi:
- Tipe Mesin: 2 tak
- Jumlah Silinder: 1 Silinder
- Sistem Pendinginan: Pendinginan Udara
- Angka Diameter Piston dan Angka Setang Piston: 66 x 58 mm
- Perpindahan: 198cc
- Pengeluaran: 8.6kW (11.7 PS)
- Sistem Start: Elektrik atau Manual Starter
- Lubrikasi: Auto-mixing
- Battery Charger: 110V atau 240V-DC 12V
- Kapasitas Tangki Bahan Bakar: 5.95L (1.57Gal)
- Konsumsi Bahan Bakar: 5.9L (1.5Gal)/ H (at W.O.T.)
- Port Penyedotan: JIS/BSP 2-1/2 Male
- Port Pelepasan: JIS/BSP 2-1/2″ Male
- Katup Pembuangan: Bola Katup
- Jumlah Port Penyedotan: 1
- Pengukur Priming: Mpa atau Psi Gauge
- Pengukur Pelepasan: Mpa atau Psi Gauge
- Lampu Sorot: Standard
- Berat Kering: 46kg (101lbs)
- Berat Operasional: 52kg (116lbs)
- Dimensi (Panjang x Lebar x Tinggi): 560 x 475 x 537mm (1.84 x 1.56 x 1.76ft

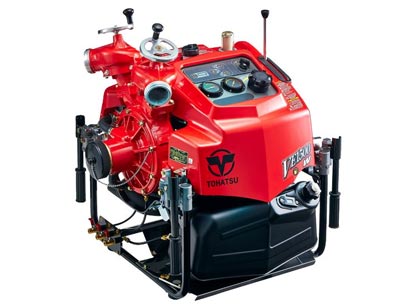

Fire Pump Tohatsu VE 1500
Spesifikasi:
- Tipe Mesin: 2 tak bahan bakar injeksi
- Jumlah Silinder: 2 Silinder
- Sistem Pendinginan: Pengisap air yang didinginkan
- Angka Diameter Piston dan Angka Setang Piston: 81 x 78 mm (3.19 x 3.07 inch)
- Perpindahan: 804cc (49.0 cu in)
- Pengeluaran: 44kW (60 PS)
- Sistem Start: Elektrik dan rekoil starter
- Minyak Mesin: 2 siklus minyak mesin
- Lubrikasi: Auto-mixing
- Battery: 12V-16Ah/5h
- Kapasitas Tangki Bahan Bakar: 24 Lit (6.34gal)
- Konsumsi Bahan Bakar: 22 Lit / Hr (5.81 gal/Hr)
- Sistem Pengisapan: Pompa vakum baling-baling putar 4 Pedang (tipe Oilless)
- Benang Penyedotan: BSP 4″ (100mm)
- Benang Pelepasan: BSP 2-1/2″ (65mm)
- Tinggi Penyedotan: Diperkirakan 9m
- Katup Pembuangan: Twin
- Dimensi (L x W x H) : 748 x 732 x 827
- Berat Operasional: 127 kg (279.99 lbs

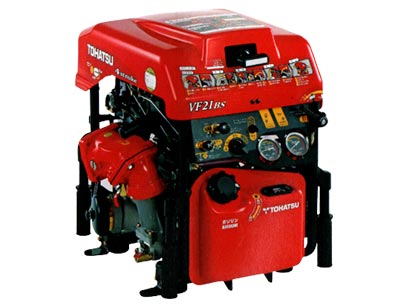

VF21BS
Performance
- 650 Lit/min at 0.4 MPa
- 500 Lit/min at 0.6 MPa
- 250 Lit/min at 0.8 MPa
Priming performance
- 3.7 sec. at suction height 1 m
- 7.0 sec. at suction height 3 m
- 15.4 sec. at suction height 6 m

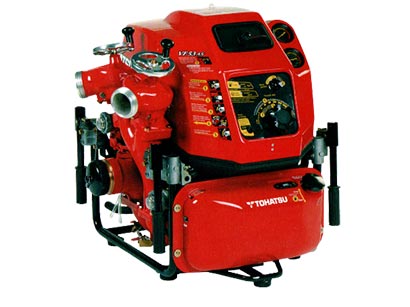

VF53AS
Performance
- 1200 Lit/min at 0.6 MPa
- 950 Lit/min at 0.8 MPa
- 700 Lit/min at 1.0 MPa
Priming performance
- 2.0 sec. at suction height 1 m
- 3.4 sec. at suction height 3 m
- 6.2 sec. at suction height 6 m

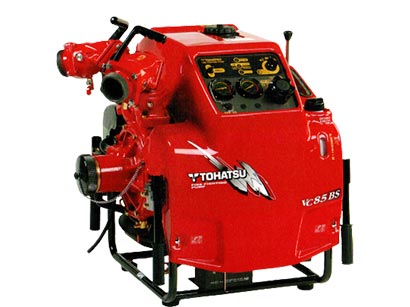

VC85BS
Performance
- 2050 Lit/min at 0.6 MPa
- 1800 Lit/min at 0.8 MPa
- 1500 Lit/min at 1.0 MPa
Priming performance
- 2.9 sec. at suction height 1 m
- 5.6 sec. at suction height 3 m
- 11.4 sec. at suction height 6 m
VC82ASE
Performance
- 2050 Lit/min at 0.6 MPa
- 1800 Lit/min at 0.8 MPa
- 1500 Lit/min at 1.0 MPa
Priming performance
- 2.3 sec. at suction height 1 m
- 4.5 sec. at suction height 3 m
- 9.2 sec. at suction height 6 m

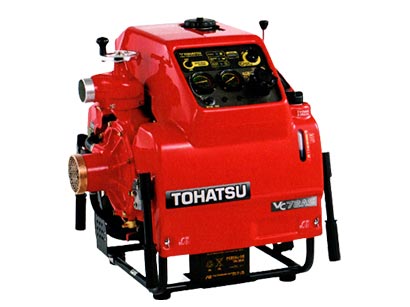

VC72AS
Performance
- 1700 Lit/min at 0.4 MPa
- 1550 Lit/min at 0.6 MPa
- 1300 Lit/min at 0.8 MPa
- 900 Lit/min at 1.0 MPa
Priming performance
- 2.3 sec. at suction height 1 m
- 4.5 sec. at suction height 3 m
- 9.2 sec. at suction height 6 m

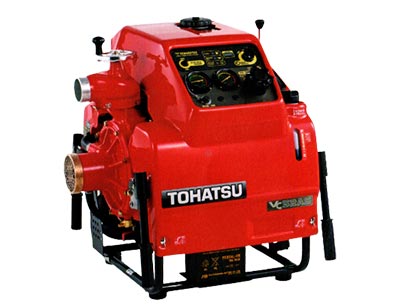

VC52AS
Performance
- 1450 Lit/min at 0.4 MPa
- 1250 Lit/min at 0.6 MPa
- 1000 Lit/min at 0.8 MPa
- 600 Lit/min at 1.0 MPa
Priming performance
- 2.3 sec. at suction height 1 m
- 4.5 sec. at suction height 3 m
- 9.2 sec. at suction height 6 m

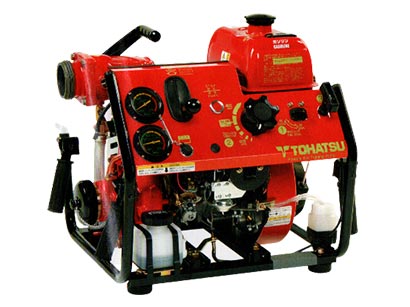

V20E/ES
Performance
- 660 Lit/min at 0.4 MPa
- 540 Lit/min at 0.6 MPa
- 290 Lit/min at 0.8 MPa
Priming performance
- 3.7 sec. at suction height 1 m
- 7.0 sec. at suction height 3 m
- 15.4 sec. at suction height 6 m

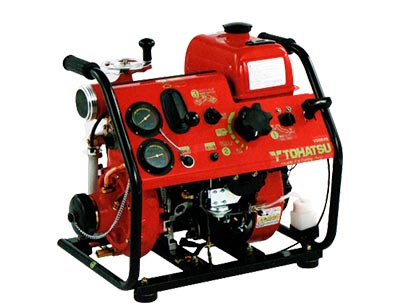

V20D/D2S
Performance
- 660 Lit/min at 0.4 MPa
- 540 Lit/min at 0.6 MPa
- 290 Lit/min at 0.8 MPa
Priming performance
- 3.7 sec. at suction height 1 m
- 7.0 sec. at suction height 3 m
- 15.4 sec. at suction height 6 m
